Quality Water Well Drilling for Today and Tomorrow!
Across Parry Sound, Muskoka and Georgian Bay Districts
Quality Water Well Drilling for Today and Tomorrow!
Across Parry Sound, Muskoka and Georgian Bay Districts
Dedicated to Ground Water Professionalism
- Licensed Water Well Contractor
- Licensed Water Well Technicians
- Ontario and National Ground Water Association Member
Services
Drilled Water Wells
Pump Installations & Water Systems
Pump Installations & Water Systems

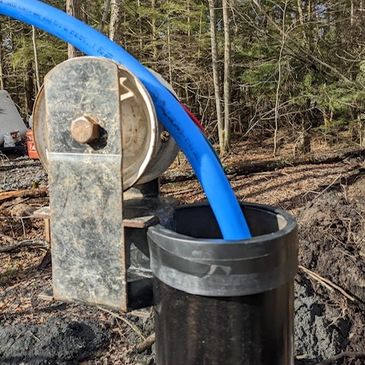

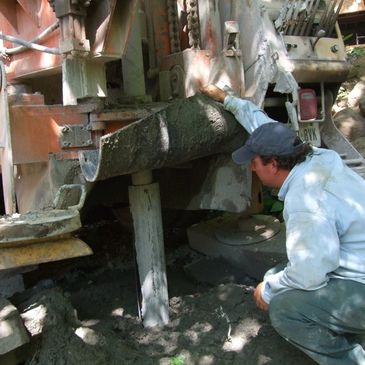

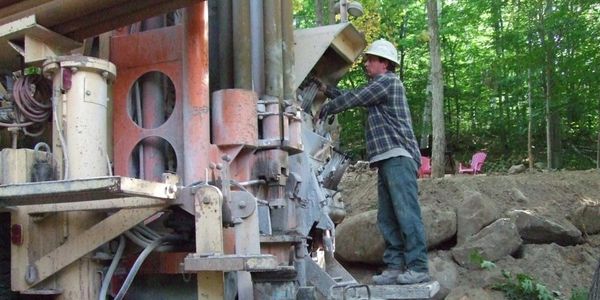

Our water wells are constructed using 0.219 wall, 6 5/8" O.D. steel well casing with a heat hardened steel drive shoe on the bottom to help in providing a good seal into the bedrock. Once the casing is set and grouted into place, a 6" hole is drilled using a down-the-hole hammer percussion button bit in search of water-bearing fractures b
Our water wells are constructed using 0.219 wall, 6 5/8" O.D. steel well casing with a heat hardened steel drive shoe on the bottom to help in providing a good seal into the bedrock. Once the casing is set and grouted into place, a 6" hole is drilled using a down-the-hole hammer percussion button bit in search of water-bearing fractures beneath. When enough water is found to be adequate for the household demands, the drilling stops and tools are pulled out and the well is capped. Following a pumping test on the well, a suitable water system can be selected.
Pump Installations & Water Systems
Pump Installations & Water Systems
Pump Installations & Water Systems
A water system can be selected once the well's yield and depth are known. The two main components of the water system are a submersible pump and motor down the well and a water pressure tank in the house. A series of piping and wiring and various fittings connect the system together. Your pump and motor supply water vertically up the wel
A water system can be selected once the well's yield and depth are known. The two main components of the water system are a submersible pump and motor down the well and a water pressure tank in the house. A series of piping and wiring and various fittings connect the system together. Your pump and motor supply water vertically up the well to a connection known as a pitless adapter. From here the water direction is changed from vertical to horizontal following the line from the well to the house. Once in the house, the water flows through a one way check valve into a pressure tank where it is pressurized and stored to supply steady pressure to all the taps in the house. Using Franklin-Electric pumps and motors and Well-X-Trol pressure tanks, we are happy to offer a 10-year warranty on these major components to your water system.
Well Abandonment
Pump Installations & Water Systems
Well Abandonment
Recent regulations in Ontario call for any old unused or improperly constructed well to be properly abandoned or decommissioned, as these are potential points for the introduction of ground water contamination. Using a licensed well contractor is necessary, as they are the only ones who are permitted to do this work in Ontario. In abando
Recent regulations in Ontario call for any old unused or improperly constructed well to be properly abandoned or decommissioned, as these are potential points for the introduction of ground water contamination. Using a licensed well contractor is necessary, as they are the only ones who are permitted to do this work in Ontario. In abandoning a well, the well is plugged up using a bentonite clay grout which is able to swell and seal off the hole that once was your well. This way your well no longer has the potential to act as a conduit for contamination into the aquifer, which is shared by us all. Help protect our precious ground water resource!
Contact Us
Call us: Toll Free 1-877-746-9578 | 705-378-9578
